UI 90
LAMIERINO 150X150
LAMINATION 150X150

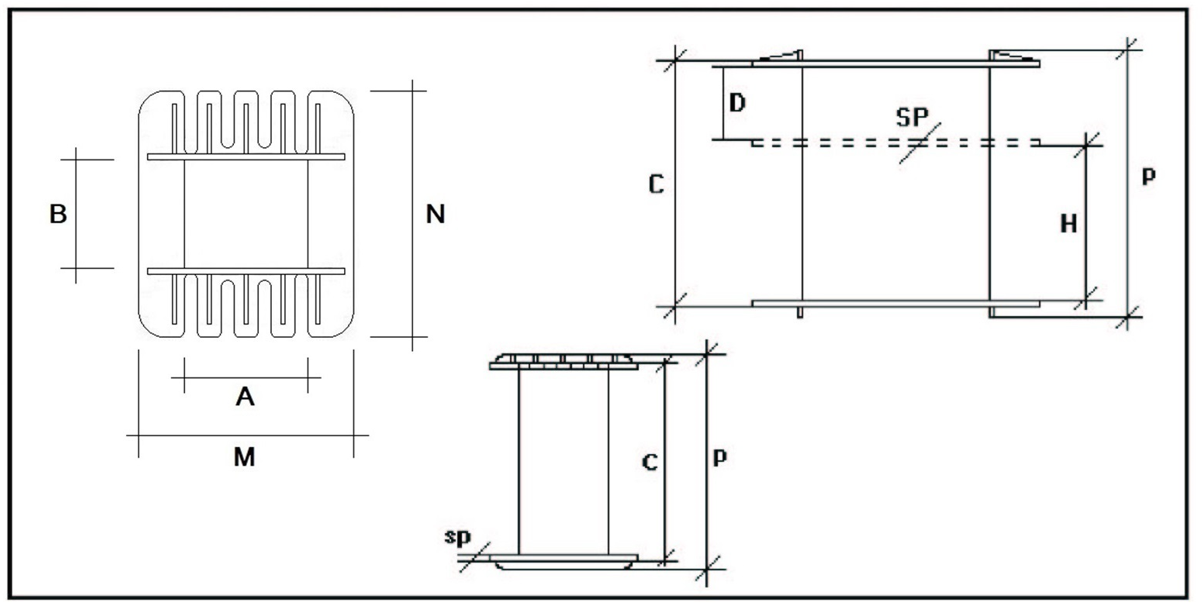

TIPO/TYPE | ART.N. | A | B | C | D | H | SP | M | N | P |
UI90/30 | 31,0 | 30,0 | 89,0 | 1,5 | 59,0 | 68,0 | 95,5 | |||
UI90/35 | 31,0 | 35,0 | 89,0 | 1,5 | 59,0 | 74,5 | 95,5 | |||
UI90/40 | 31,0 | 40,0 | 89,0 | 1,5 | 59,0 | 79,0 | 95,5 | |||
UI90/45 | 31,0 | 45,0 | 89,0 | 1,5 | 59,0 | 84,0 | 95,5 | |||
UI90/50 | 31,0 | 50,0 | 89,0 | 1,5 | 59,0 | 89,0 | 95,5 | |||
UI90/55 | 31,0 | 55,0 | 89,0 | 1,5 | 59,0 | 94,0 | 95,5 | |||
UI90/60 | 31,0 | 60,0 | 89,0 | 1,5 | 59,0 | 100,0 | 95,5 | |||
UI90/75 | 31,0 | 75,0 | 89,0 | 1,5 | 59,0 | 113,0 | 95,5 |
