UI 240 SISTEMA MODULARE TIPO AP
LAMIERINO 400X400
LAMINATION 400X400
TIPO AP ( PER DISSIPAZIONE DI CALORE )
TYIPE AP ( AIR COOLING SYSTEM )
TIPO/TYPE | ART.N. | A | B | C | F | G | SP | M | N | P |
UI240 | 81,5 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 252,0 | |||
UI 240/80 | 81,5 | 80,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 200,0 | 252,0 | |
UI 240/90 | 81,5 | 90,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 210,0 | 252,0 | |
UI 240/100 | 81,5 | 100,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 220,0 | 252,0 | |
UI 240/110 | 81,5 | 110,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 230,0 | 252,0 | |
UI 240/120 | 81,5 | 120,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 240,0 | 252,0 | |
UI 240/130 | 81,5 | 130,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 250,0 | 252,0 | |
UI 240/140 | 81,5 | 140,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 260,0 | 252,0 | |
UI 240/150 | 81,5 | 150,0 | 240,0 | 40,0 | 100,0 | 3,0 | 160,0 | 270,0 | 252,0 |

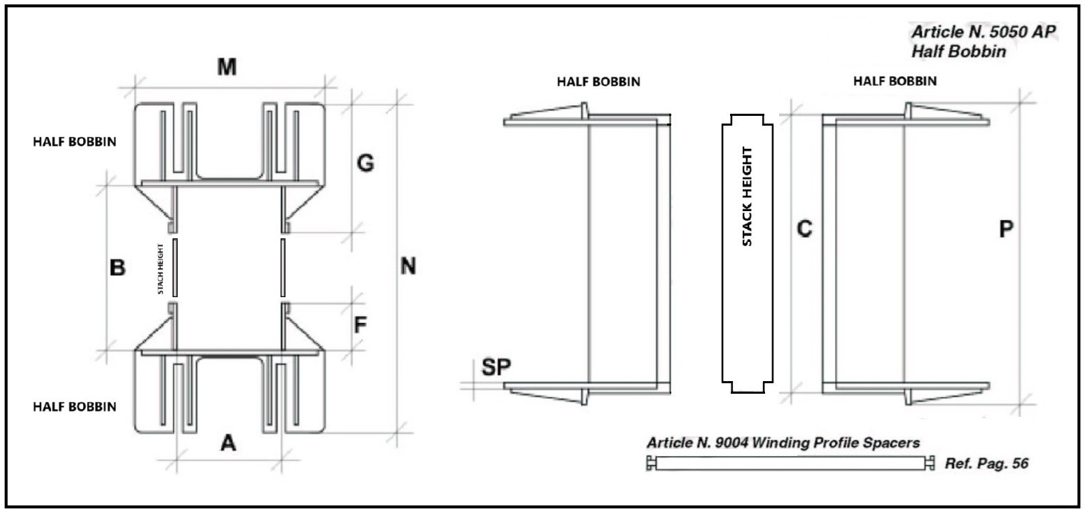

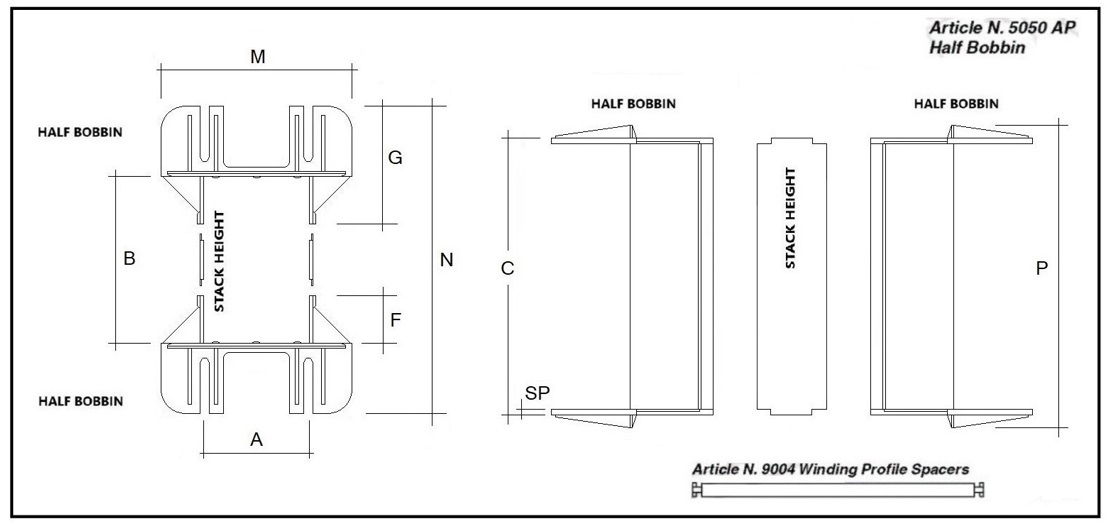

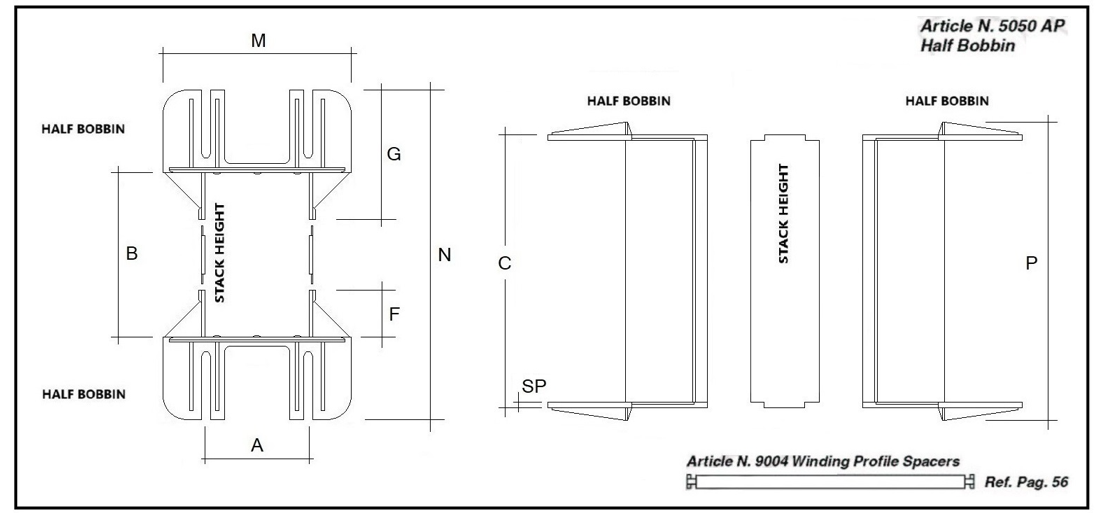

Gli articoli " UI 240 SISTEMA MODULARE " sono il risultato di un assemblaggio di semirocchetti e intercalari . Per visualizzare il dettaglio cliccare TABELLA 3 oppure scaricare la relativa PAGINA UI 240 AP
The articles " UI 240 MODULAR SYSTEM" are the result of assembly of half bobbins and stack heights. To view the detail click on TABLE 3 or download the PAGE UI 240 AP
