UI 150
LAMIERINO 250X250
LAMINATION 250X250

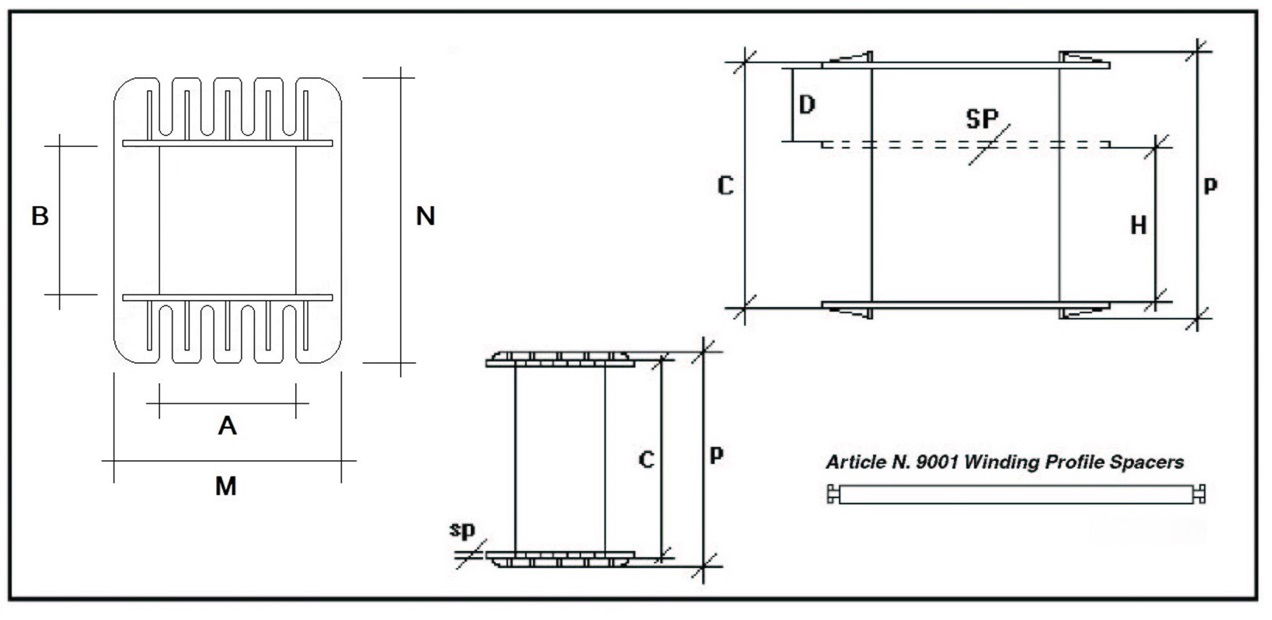

TIPO/TYPE | ART.N. | A | B | C | D | H | SP | M | N | P |
UI150/50 | 51,0 | 50,0 | 149,0 | 2,0 | 97,5 | 107,0 | 157,0 | |||
UI150/60 | 51,0 | 60,0 | 149,0 | 2,0 | 97,5 | 117,0 | 157,0 | |||
UI150/70 | 51,0 | 70,0 | 149,0 | 2,0 | 97,5 | 128,0 | 157,0 | |||
UI150/80 | 51,0 | 80,0 | 149,0 | 2,0 | 97,5 | 138,0 | 157,0 | |||
UI150/90 | 51,0 | 90,0 | 149,0 | 2,0 | 97,5 | 147,0 | 157,0 | |||
UI150/100 | 51,0 | 100,0 | 149,0 | 2,0 | 97,5 | 157,0 | 157,0 |
