UI 120
LAMIERINO 200X200
LAMINATION 200X200

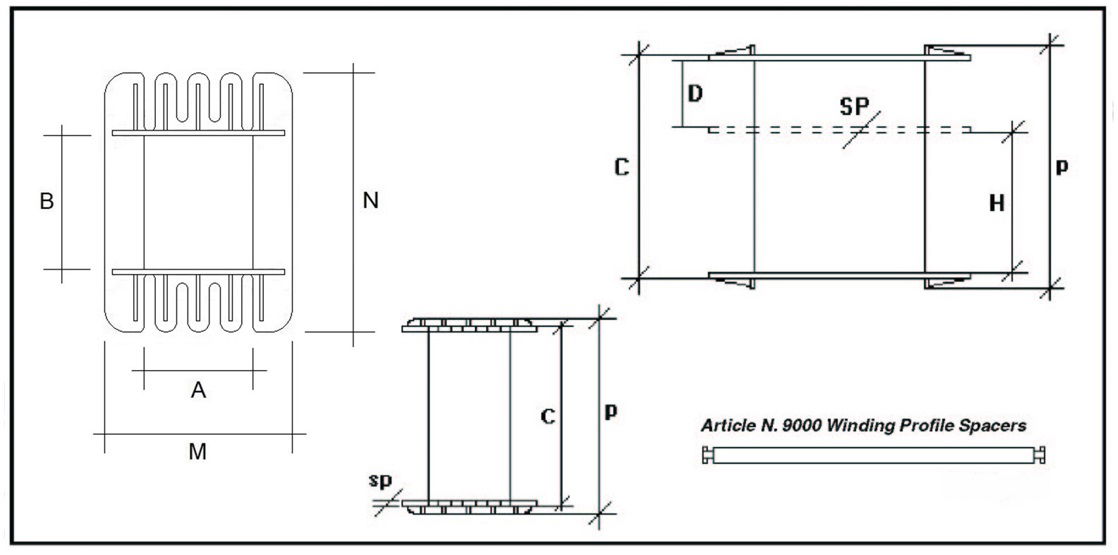

TIPO/TYPE | ART.N. | A | B | C | D | H | SP | M | N | P |
UI120/40 | 41,0 | 40,0 | 119,0 | 2,0 | 78,5 | 89,5 | 128,0 | |||
UI120/40/2 | 41,0 | 40,0 | 119,0 | 53,0 | 60,5 | 2,0 | 78,5 | 89,5 | 128,0 | |
UI120/50 | 41,0 | 50,0 | 119,0 | 2,0 | 78,5 | 99,0 | 128,0 | |||
UI120/50/2 | 41,0 | 50,0 | 119,0 | 53,0 | 60,5 | 2,0 | 78,5 | 99,0 | 128,0 | |
UI120/60 | 41,0 | 60,0 | 119,0 | 2,0 | 78,5 | 110,0 | 128,0 | |||
UI120/60/2 | 41,0 | 60,0 | 119,0 | 53,0 | 60,5 | 2,0 | 78,5 | 110,0 | 128,0 | |
UI120/75 | 41,0 | 75,0 | 119,0 | 2,0 | 78,5 | 123,0 | 128,0 | |||
UI120/75/2 | 41,0 | 75,0 | 119,0 | 53,0 | 60,5 | 2,0 | 78,5 | 123,0 | 128,0 | |
UI120/80 | 1322MK | 41,0 | 75,0 | 119,0 | 2,0 | 78,5 | 135,0 | 128,0 |
