EI 240 FLANGIA INTERMEDIA

LAMIERINO 200X240

LAMINATION 200X240

SEMIROCCHETTO DOPPIA SEZIONE - HALF BOBBIN DOUBLE SECTION

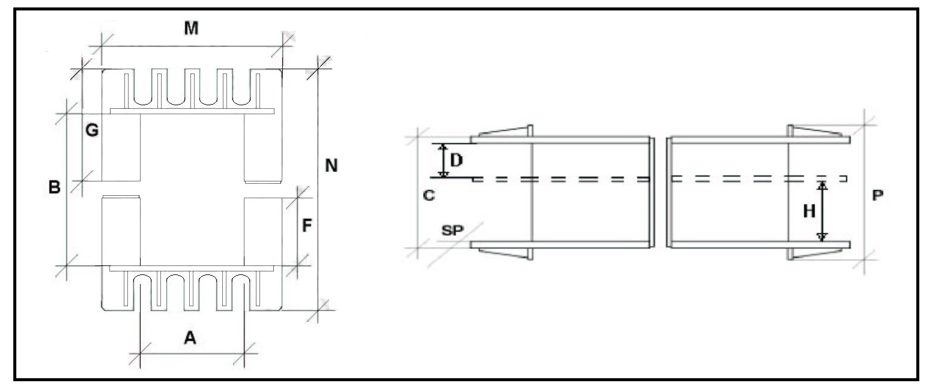

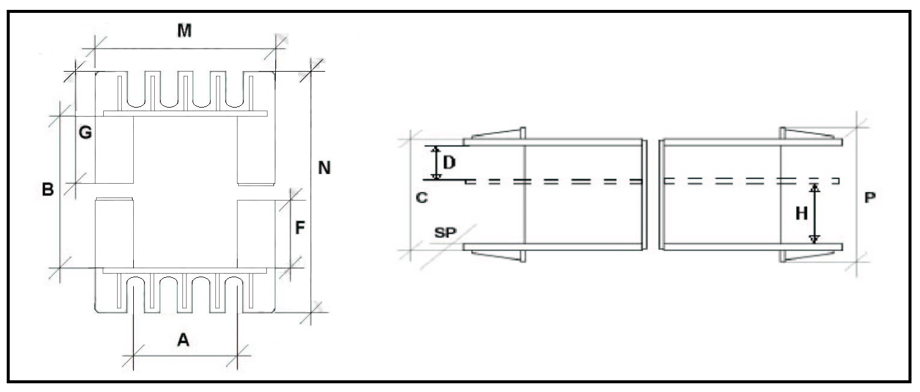

TIPO/TYPE	ART.N.	A	B	C	F	G	D	H	SP	M	N	P
EI 240/2	MS 30/CE	80,0		120,0	30,0	80,0	54,5	54,5	3,0	158,0		130,0
EI 240/2	MS 40/CE	80,0		120,0	40,0	90,0	54,5	54,5	3,0	158,0		130,0
EI 240/2	MS 50/CE	80,0		120,0	50,0	100,0	54,5	54,5	3,0	158,0		130,0
EI 240/2	MS 60/CE	80,0		120,0	60,0	110,0	54,5	54,5	3,0	158,0		130,0

SEMIROCCHETTO SEZIONE DECENTRATA - HALF BOBBIN SECTION DECENTRALIZE

TIPO/TYPE	ART.N.	A	B	C	F	G	D	H	SP	M	N	P
EI 240/2	MS 30/SP	80,0		120,0	30,0	80,0	48,5	60,5	3,0	158,0		130,0
EI 240/2	MS 40/SP	80,0		120,0	40,0	90,0	48,5	60,5	3,0	158,0		130,0
EI 240/2	MS 50/SP	80,0		120,0	50,0	100,0	48,5	60,5	3,0	158,0		130,0
EI 240/2	MS 60/SP	80,0		120,0	60,0	110,0	48,5	60,5	3,0	158,0		130,0

DOPPIA SEZIONE – DOUBLE SECTION

TIPO/TYPE	ART.N.	A	B	C	F	G	D	H	SP	M	N	P
EI240/60/2	3800/1/CE	80,0	60,0	120,0	30,0	80,0	54,5	54,5	3,0	158,0	160,0	130
EI240/70/2	3900/1/CE	80,0	70,0	120,0			54,5	54,5	3,0	158,0	170,0	130
EI240/80/2	4000/1/CE	80,0	80,0	120,0	40,0	90,0	54,5	54,5	3,0	158,0	180,0	130
EI240/90/2	4000/2/CE	80,0	90,0	120,0			54,5	54,5	3,0	158,0	190,0	130
EI240/100/2	4000/3/CE	80,0	100,0	120,0	50,0	100,0	54,5	54,5	3,0	158,0	200,0	130
EI240/110/2	4000/4/CE	80,0	110,0	120,0			54,5	54,5	3,0	158,0	210,0	130
EI240/120/2	4000/5/CE	80,0	120,0	120,0	60,0	110,0	54,5	54,5	3,0	158,0	220,0	130

DOPPIA SEZIONE DECENTRATA – DOUBLE SECTION DECENTRALIZE

TIPO/TYPE	ART.N.	A	B	C	F	G	D	H	SP	M	N	P
EI240/60/2	3800/1/SP	80,0	60,0	120,0	30,0	80,0	48,5	60,5	3,0	158,0	160,0	130
EI240/70/2	3900/1/SP	80,0	70,0	120,0			48,5	60,5	3,0	158,0	170,0	130
EI240/80/2	4000/1/SP	80,0	80,0	120,0	40,0	90,0	48,5	60,5	3,0	158,0	180,0	130
EI240/90/2	4000/2/SP	80,0	90,0	120,0			48,5	60,5	3,0	158,0	190,0	130
EI240/100/2	4000/3/SP	80,0	100,0	120,0	50,0	100,0	48,5	60,5	3,0	158,0	200,0	130
EI240/110/2	4000/4/SP	80,0	110,0	120,0			48,5	60,5	3,0	158,0	210,0	130
EI240/120/2	4000/5/SP	80,0	120,0	120,0	60,0	110,0	48,5	60,5	3,0	158,0	220,0	130

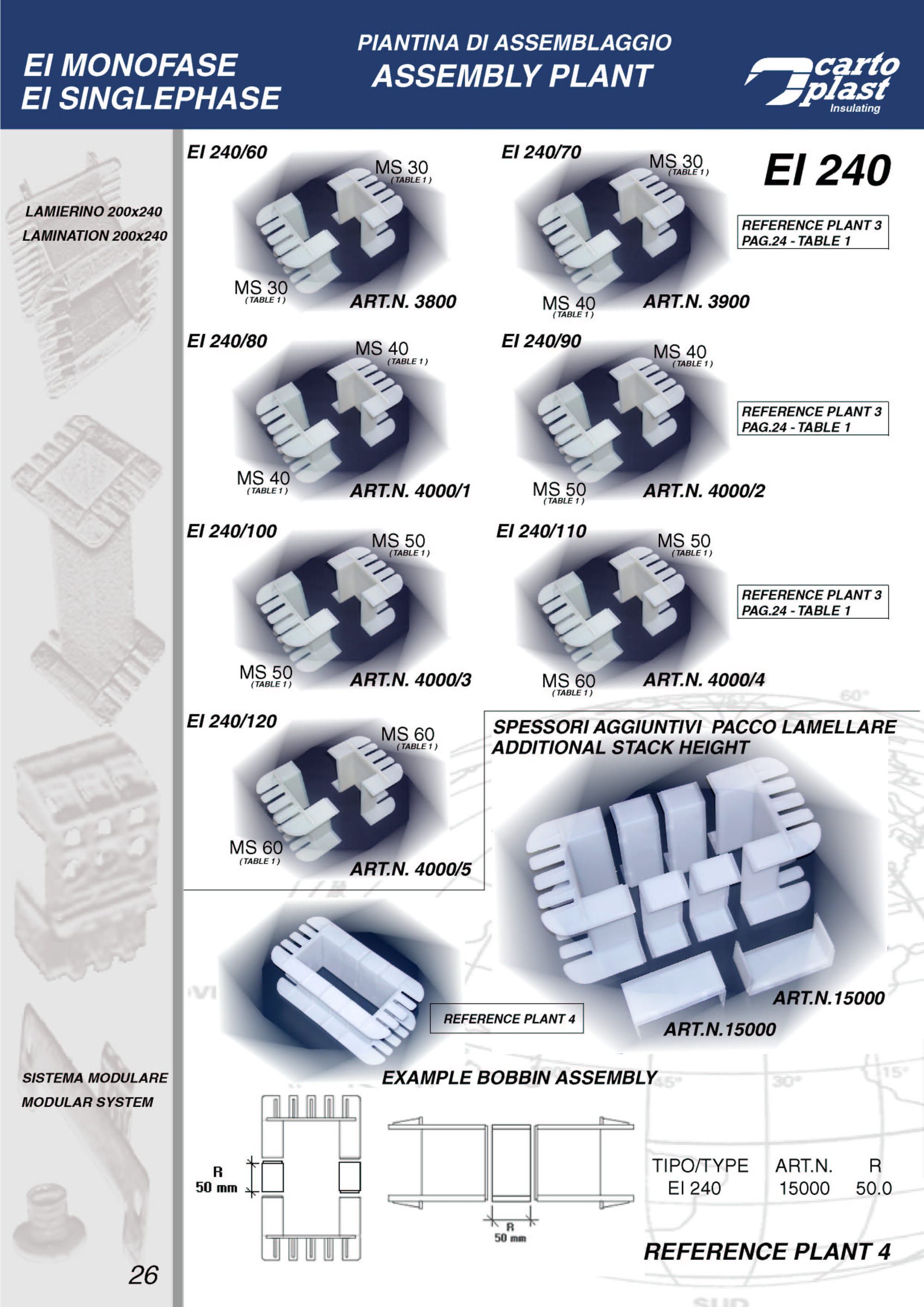

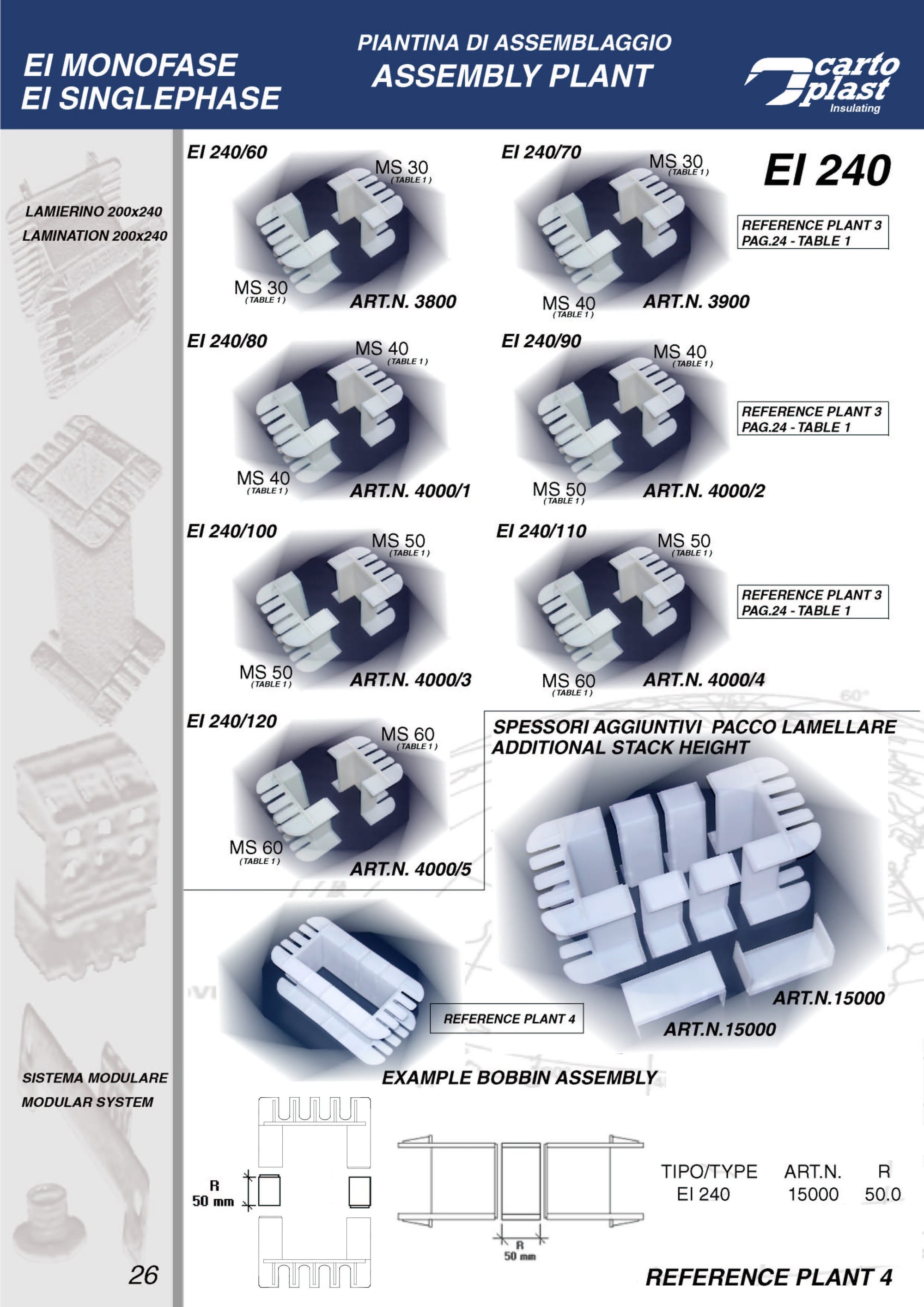

Gli articoli " EI 240 FLANGIA INTERMEDIA " sono il risultato di un assemblaggio di semirocchetti MS/CE o MS/SP di diverse misure . Per indicare un ordine corretto e per visualizzare le versione con spessori aggiuntivi pacco lamellare cliccare qui: ASSEMBLY PLAN EI 240

The articles " EI 240 DOUBLE SECTION " are the result of assembly of MS/CE or MS/SP half bobbins of different sizes . To indicate a correct order and to view the versions with additional stack height click here : ASSEMBLY PLAN EI 240
