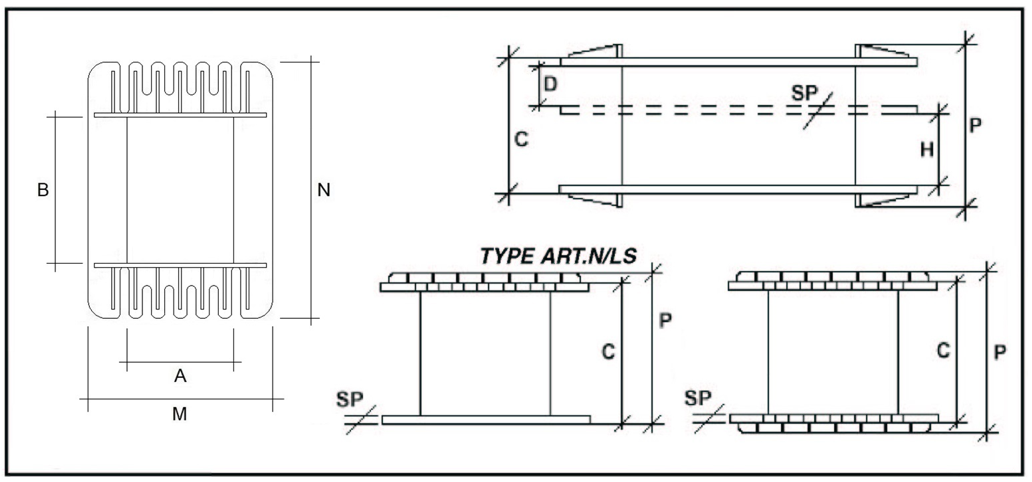

LAMIERINO 125X150
LAMINATION 125X150
TIPO/TYPE | ART.N. | A | B | C | D | H | SP | M | N | P |
EI150/40 | 51,0 | 40,0 | 74,0 | 2,0 | 100,0 | 100,0 | 84,0 | |||
EI150/40/2 | 51,0 | 40,0 | 74,0 | 32,0 | 37,5 | 2,0 | 100,0 | 100,0 | 84,0 | |
EI150/40/LS | 51,0 | 40,0 | 74,0 | 2,0 | 100,0 | 100,0 | 79,0 | |||
EI150/50 | 51,0 | 50,0 | 74,0 | 2,0 | 100,0 | 109,0 | 84,0 | |||
EI150/50/2 | 51,0 | 50,0 | 74,0 | 32,0 | 37,5 | 2,0 | 100,0 | 109,0 | 84,0 | |
EI150/50/LS | 51,0 | 50,0 | 74,0 | 2,0 | 100,0 | 109,0 | 79,0 | |||
EI150/60 | 51,0 | 60,0 | 74,0 | 2,0 | 100,0 | 119,0 | 84,0 | |||
EI150/60/2 | 51,0 | 60,0 | 74,0 | 32,0 | 37,5 | 2,0 | 100,0 | 119,0 | 84,0 | |
EI150/60/LS | 51,0 | 60,0 | 74,0 | 2,0 | 100,0 | 119,0 | 79,0 | |||
EI150/70 | 51,0 | 70,0 | 74,0 | 2,0 | 100,0 | 128,5 | 84,0 | |||
EI150/70/2 | 51,0 | 70,0 | 74,0 | 32,0 | 37,5 | 2,0 | 100,0 | 128,5 | 84,0 | |
EI150/70/LS | 51,0 | 70,0 | 74,0 | 2,0 | 100,0 | 128,5 | 79,0 | |||
EI150/80 | 51,0 | 80,0 | 74,0 | 2,0 | 100,0 | 139,0 | 84,0 | |||
EI150/80/2 | 51,0 | 80,0 | 74,0 | 32,0 | 37,5 | 2,0 | 100,0 | 139,0 | 84,0 | |
EI150/80/LS | 51,0 | 80,0 | 74,0 | 2,0 | 100,0 | 139,0 | 79,0 | |||
EI150/90 | 51,0 | 90,0 | 74,0 | 2,0 | 100,0 | 148,0 | 84,0 | |||
EI150/90/2 | 51,0 | 90,0 | 74,0 | 32,0 | 37,5 | 2,0 | 100,0 | 148,0 | 84,0 | |
EI150/90/LS | 51,0 | 90,0 | 74,0 | 2,0 | 100,0 | 148,0 | 79,0 | |||
EI150/100 | 51,0 | 100,0 | 74,0 | 2,0 | 100,0 | 159,0 | 84,0 | |||
EI150/10/2 | 51,0 | 100,0 | 74,0 | 32,0 | 37,5 | 2,0 | 100,0 | 159,0 | 84,0 | |
EI150/100/LS | 51,0 | 100,0 | 74,0 | 2,0 | 100,0 | 159,0 | 79,0 |
