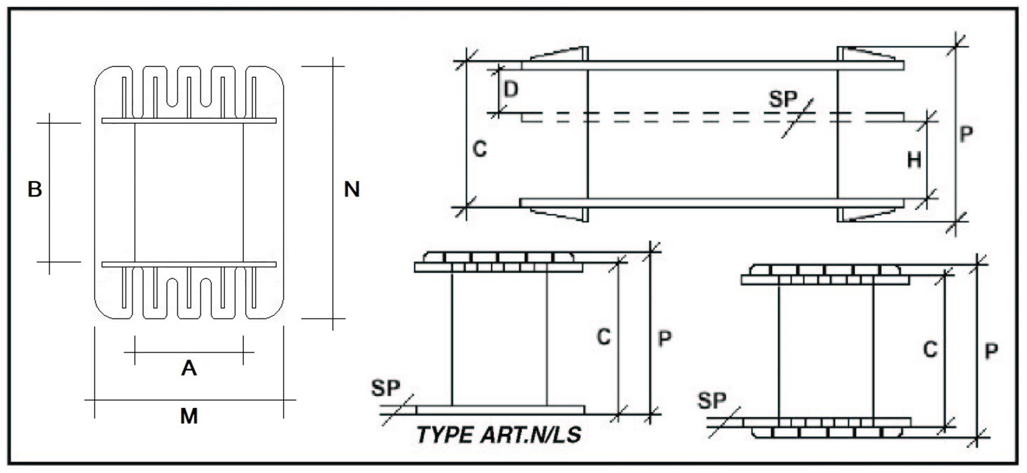

EI 120
LAMIERINO 100X120
LAMINATION 100X120
TIPO/TYPE | ART.N. | A | B | C | D | H | SP | M | N | P |
EI120/30 | 40,5 | 30,0 | 59,5 | 1,8 | 78,0 | 76,0 | 67,0 | |||
EI120/30/2 | 40,5 | 30,0 | 59,5 | 25,0 | 28,0 | 1,8 | 78,0 | 76,0 | 67,0 | |
EI120/40 | 40,5 | 40,0 | 59,5 | 1,8 | 78,0 | 83,0 | 67,0 | |||
EI120/40/2 | 40,5 | 40,0 | 59,5 | 25,0 | 28,0 | 1,8 | 78,0 | 83,0 | 67,0 | |
EI120/40 /LS | 40,5 | 40,0 | 59,5 | 1,8 | 78,0 | 83,0 | 63,0 | |||
EI120/45 | 40,5 | 45,0 | 59,5 | 1,8 | 78,0 | 89,0 | 67,0 | |||
EI120/45/2 | 40,5 | 45,0 | 59,5 | 25,0 | 28,0 | 1,8 | 78,0 | 89,0 | 67,0 | |
EI120/50 | 40,5 | 50,0 | 59,5 | 1,8 | 78,0 | 91,0 | 67,0 | |||
EI120/50/2 | 40,5 | 50,0 | 59,5 | 25,0 | 28,0 | 1,8 | 78,0 | 91,0 | 67,0 | |
EI120/50/LS | 40,5 | 50,0 | 59,5 | 1,8 | 78,0 | 91,0 | 63,0 | |||
EI120/55 | 40,5 | 55,0 | 59,5 | 1,8 | 78,0 | 99,0 | 67,0 | |||
EI120/60 | 40,5 | 60,0 | 59,5 | 1,8 | 78,0 | 100,0 | 67,0 | |||
EI120/60/2 | 40,5 | 60,0 | 59,5 | 25,0 | 28,0 | 1,8 | 78,0 | 100,0 | 67,0 | |
EI120/60/LS | 40,5 | 60,0 | 59,5 | 1,8 | 78,0 | 100,0 | 63,0 | |||
EI120/65 | 40,5 | 65,0 | 59,5 | 1,8 | 78,0 | 109,0 | 67,0 | |||
EI120/70 | 40,5 | 7,0 | 59,5 | 1,8 | 78,0 | 112,0 | 67,0 | |||
EI120/70/2 | 40,5 | 70,0 | 59,5 | 25,0 | 28,0 | 1,8 | 78,0 | 112,0 | 67,0 | |
EI120/70/LS | 40,5 | 70,0 | 59,5 | 1,8 | 78,0 | 112,0 | 63,0 | |||
EI120/80 | 40,5 | 80,0 | 59,5 | 1,8 | 78,0 | 122,5 | 67,0 | |||
EI120/80/2 | 40,5 | 80,0 | 59,5 | 25,0 | 28,0 | 1,8 | 78,0 | 122,5 | 67,0 | |
EI120/80/LS | 40,5 | 80,0 | 59,5 | 1,8 | 78,0 | 122,5 | 63,0 |
